Product Description

Butt welding is a connection method of welding. This welding technique has no parallels and overlaps. This process is the foundation of the piping system. It is used to weld two pipes together and weld around the seam without any overlap. Butt welding is a low-cost and reliable connection method without the use of additional components.

Butt Weld Pipe Fitting is an accessory for pipe connection. It is designed to change the pipe direction and pipe diameter, branch or end the pipe system. Then connect the pipe fittings to the piping system to transport fluids over long distances in an efficient way.

Due to the low cost of Butt Weld Pipe Fitting and the ease of manufacturing various pipe fittings, butt welded pipe fittings are usually used in the manufacturing process.

Advantage

1. Low cost and convenient operation. The weld design has a large degree of freedom and a small footprint.

2. Welded fitting connections are usually permanently leak-proof.

3. The butt welding joint is a continuous metal structure between the pipeline and the fittings, which has high strength performance in the pipeline system.

4. Butt Weld Pipe Fitting has a smooth inner surface and a gradual change in direction. Then it will reduce the pressure loss and turbulence of fluid transport.

5. It can also minimize the effects of corrosion and frictional resistance.

Technical specifications

Ranges of tee: 90mm-315mm

(90mm-110mm-125mm-140mm-160mm-180mm-200mm-225mm-250mm-280mm-315mm)

Ranges of cross: 90mm-315mm

(90mm-110mm-125mm-140mm-160mm-180mm-200mm-225mm-250mm-280mm-315mm)

Ranges of elbow(n×11.25°): 90mm-315mm

(90mm-110mm-125mm-140mm-160mm-180mm-200mm-225mm-250mm-280mm-315mm)

Ranges of application: PE,PP and PVDF

Working voltage: ~380V ±10%,50Hz

Total power: 7.4 kW, including: planing tool motor:1.5 kW, heating plate:5.15 kW, hydraulic unit motor: 0.75 kW

PTFE coated heating plate, high accuracy temperature controller, difference in heating plate surface temperature ≤±5°;Environment temperature: -10° ~ 45°

Electronic count-down timer for heating and cooling time.

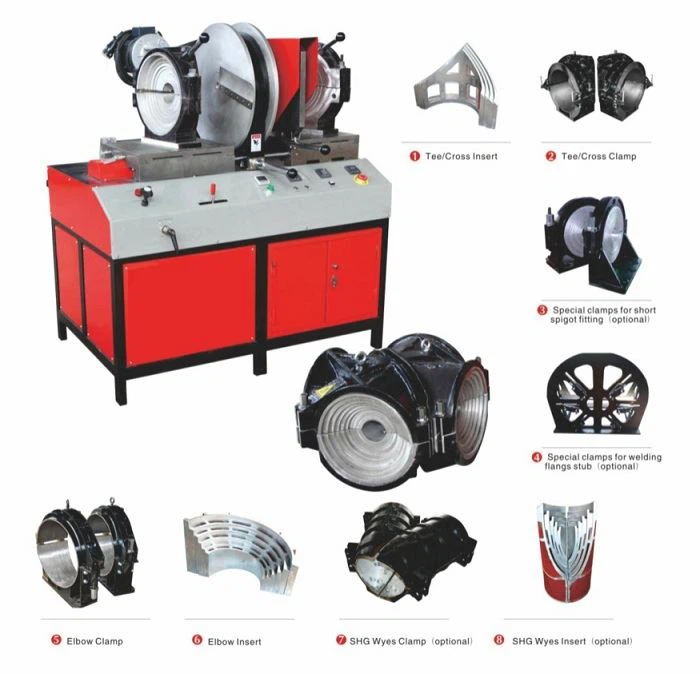

Whole machine consists of four parts: basic frame (including: heating plate, planing tool, and hydraulic system), elbow clamps, tee clamps, and cross clamps

DVS2207

202103171411073492613
