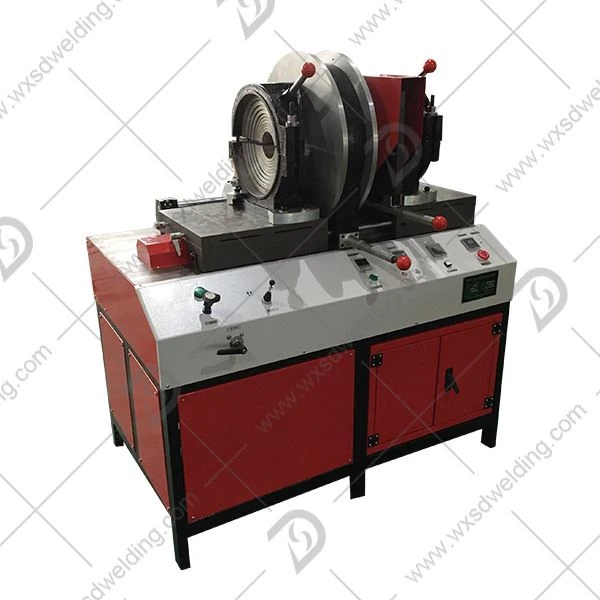

This machine is a powerful tool in the manufacturing industry used for making pipe fittings. It is capable of producing high-quality fittings for various applications such as plumbing, construction, and industrial purposes.
With this machine, it is possible to create various fittings such as elbows, tees, crosses, and Y fittings with precision and accuracy. The machine is designed to handle a wide range of materials, including stainless steel, copper, and PVC, making it a versatile tool for any manufacturing company.
Moreover, this machine can significantly reduce production time and labor costs since it can produce a large quantity of fittings with minimal manual intervention. The fittings produced by this machine are also highly durable and long-lasting, making them the perfect fit for any project.
In addition to its practical uses, this machine is also environmentally friendly. It uses energy-efficient technology, reducing its carbon footprint and contributing to the sustainability of the planet.
Overall, this machine plays a vital role in the manufacturing of high-quality pipe fittings. Its versatility, accuracy, and efficiency make it an essential tool for any manufacturing company, contributing to the growth and success of various industries.
Technical parameter
Ranges of tee: 90mm－315mm
(90mm－110mm－125mm－140mm－160mm－180mm－200mm－225mm－250mm－280mm－315mm)
Ranges of cross: 90mm－315mm
(90mm－110mm－125mm－140mm－160mm－180mm－200mm－225mm－250mm－280mm－315mm)
Ranges of elbow(n×11.25°): 90mm－315mm
(90mm－110mm－125mm－140mm－160mm－180mm－200mm－225mm－250mm－280mm－315mm)
◆ Ranges of application: PE,PP and PVDF
◆ Working voltage: ～380V ±10%,50Hz
Total power: 7.4 kW , including: planing tool motor：1.5 kW, heating plate：5.15 kW, hydraulic unit motor: 0.75 kW
◆ PTFE coated heating plate, high accuracy temperature controller, difference in heating plate surface temperature ≤±5°;Environment temperature: －10° ～ 45°
◆ Electronic count-down timer for heating and cooling time.
◆ Whole machine consists of four parts: basic frame ( including: heating plate, planing tool, and hydraulic system), elbow clamps, tee clamps, and cross clamps
ACCESSORIES LIST
|
Item |
Description |
Unit |
Qty |
Remark |
|
1 |
Machine |
set |
1 |
|
|
2 |
9-cord cable |
set |
1 |
|
|
3 |
Inserts of cross clamps |
set |
1 |
90mm～280mm |
|
4 |
Cross clamps |
set |
1 |
|
|
5 |
Inserts of elbow clamps |
set |
1 |
90mm～280mm |
|
6 |
Elbow clamps |
set |
1 |
|
|
7 |
Motor of planing tool |
set |
1 |
|
|
8 |
Pressure plate bolt |
Set |
1 |
External hexangular |
|
9 |
Binding bolt of cross clamps |
set |
1 |
External hexangular |
|
10 |
Special bolt for clamp |
set |
1 |
|
|
11 |
Pressure plate of elbow clamp |
set |
1 |
M8 |
|
12 |
Locating pin |
pcs |
2 |
|
|
Attachment with machine |
||||
|
1 |
Leather hammer |
set |
1 |
|
|
2 |
Ratchet wrench |
set |
1 |
22mm |
|
3 |
Double open wrench |
set |
1 |
11～13mm |
|
4 |
Double open wrench |
set |
1 |
22～24mm |
|
5 |
Screwdriver |
set |
1 |
200mm |
|
6 |
Blade of planing tool |
pcs |
2 |
|
|
7 |
Conformity certificate |
pcs |
1 |
|
|
8 |
Operation instruction |
pcs |
1 |
|
|
Optional parts |
||||
|
1 |
Temperature sensor |
Set |
1 |
PT100 |
|
2 |
Heating switch |
Set |
1 |
|
|
3 |
Temperature controller |
Set |
1 |
|
PACKING LIST
|
Item |
Dimension with packing(mm) |
N.W(kg) |
G.W(kg) |
Remark |
|
1 |
1350×1140×1660 |
550 |
665 |
Basic frame, attachments |
|
2 |
810×430×580 |
90 |
100 |
Cross/Tee inserts(1) |
|
3 |
810×430×580 |
90 |
100 |
Cross/Tee inserts(2) |
|
4 |
600×380×540 |
65 |
90 |
Elbow inserts |
|
Total |
3.1 CBM |
795 |
955 |
|
Features
◆ Integrated structure design which can fabricating different fittings by changing corresponding clamps;
◆ Removable PTFE coated heating plate with separate temperature control system;
◆ Electrical planning tool with safety limit switch to avoid starting unexpectedly;
◆ Low starting pressure and high reliable seal structure;
◆ Separate two-channel timer shows time in soaking and cooling phases. Give a alarm when timing over;
◆ High-accurate and shockproof pressure meter indicates clearer readings. Digital pressure meter is installed on machines;
◆ Pivoting planning tool and heating plate bring convenience to placing and removing;
◆ Product meets 98/37/EC and 73/23/EEC standards.
Application
Suitable for fabricating elbow, tee, cross and Y shape (45° and 60 °) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.
