Application
Suitable for fabricating elbow, tee, cross and Y shape(45°and 60°) fittings of PE,PP, PVDF in workshop.
Features
Applied to fabricate PE PP PVDF elbow, tee, cross and Y shape (45° and 60°)
Fitting in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.
Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fitting
Removing PTEF coated heating plate with separate temperature controlling system.
Electric planning tool with safety limit switch enable to start it only when it is locked in the operation position.
Low starting pressure and high reliable seal structure.
Separate two-channel timer record times in soaking and cooling phase.
Digital pressure meter enable to control pressure accurately.
Linear guide ways are equipped with eating plate, planning tool and dragging plate.
Products comply with 98/37/EC and 73/23/EEC standards.
Technical specifications
◆ Ranges of tee: 500mm－800mm
(500mm-560mm-630mm-710mm-800mm)
◆ Ranges of cross: 500mm－800mm
(500mm-560mm-630mm-710mm-800mm)
Ranges of elbow (n×11.25°): 500mm－800mm
(500mm-560mm-630mm-710mm-800mm)
Ranges of application: PE, PP and PVDF
Working voltage: ～380V ±10%, 50Hz
Total power: 47.28 kW, including: planing tool motor: 4 kW, heating plate: 39.28 kW, hydraulic unit motor: 4 kW
PTFE coated heating plate, high accuracy temperature controller, difference in heating plate surface temperature ≤±5°; PLC control system;
Environment temperature: －10° ～45°
Electronic count-down timer for heating and cooling time.

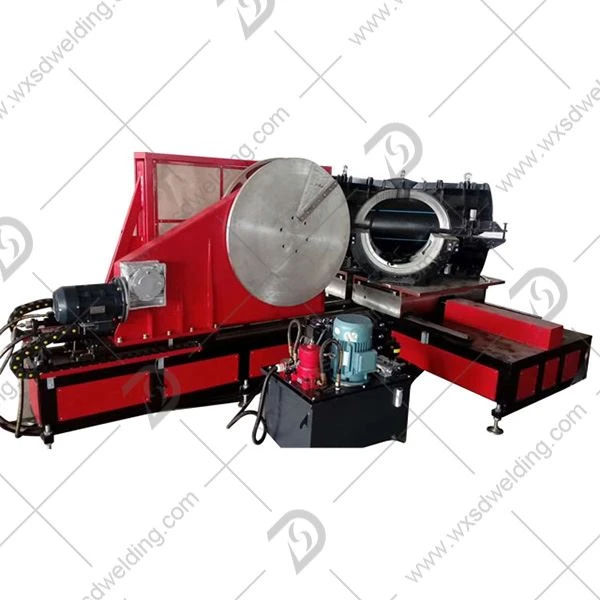

Whole machine consists of four parts: basic frame (including: heating plate, planing tool, and hydraulic system), elbow clamps, tee clamps, and cross clamps
ACCESSORIES LIST
No | Name | Unit | Qty | Remark |
1 | Main machine | set | 1 | |
2 | Electrical control box | set | 1 | |
3 | Tee clamps (inserts included) | set | 1 | Spec: Φ500~Φ800 |
4 | Elbow clamps (inserts included) | set | 1 | Spec: Φ800~Φ800 |
5 | Screws for main clamp | set | 1 | Outer hexagonal screw: M16 ×110 8pcs M16 ×90 10pcs |
6 | Elbow main clamp locking plate | pcs | 4 | |
Accessories with machine | ||||
1 | Hammer | pcs | 1 | |
2 | Screws for inserts | set | 1 | |
3 | Special location handle | pcs | 1 | |
4 | Spare blade | pcs | 2 | |
5 | Location pin | pcs | 6 | 4 short 2 long |
6 | 24mm box wrench | set | 1 | |
7 | inner hex wrench | set | 1 | Spec: 4~14 |
8 | 250mm adjustable spanner | pcs | 1 | |
9 | 24mmcombination spanner | pcs | 1 | |
10 | Open end wrench | pcs | 1 | Spec: 32~36 |
11 | cross screw driver | pcs | 1 each | Spec: 150mm, 250mm |
12 | Warranty card | pcs | 1 | |
13 | Operation manual | pcs | 1 | |
14 | Adjustment cushion | set | 8 | |
15 | Planing limit box | pcs | 1 | |
PACKING LIST
Item | Dimension with packing（mm） | N.W（kg） | G.W（kg） | Remark |
1 | 2020×2020×1790 | 3000 | 3450 | Basic frame |
2 | 920×720×1110 | 180 | 210 | Hydraulic unit |
3 | 850×890×900 | 580 | 610 | Elbow clamps |
4 | 1100×1020×880 | 750 | 790 | Cross clamps |
5 | 820×670×1150 | 60 | 75 | Electric box |
Total | 10.3CBM | 4570 | 5135 |
