Product Description
SDD355 Poly Pipe Welder is able to weld pipes and fittings with material pe pipe,hdpe pipe , operation easily and suitable for any complex work condition. SDD355 Poly Pipe Welder Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
Feature :
1.Removable PTFE coated heating plate with separate temperature control system.
2. Electric planning tool with reversible double cutting edge blades.
3. Hydraulic unit provides welding machine with compressing power.
4. Be made of Aluminum material, easy to carry and transport.
5.Low starting pressure ensures reliable welding quality of small pipes.
6. Temperature Controller and Timer, easy to know the time and temperature.
Technology parameter
| Model | SDD355 |
| Welding diameters (mm) | 90-110-125-140-160-180-200-225-250-280-315-355mm |
| Heating plate temperature | 270°C |
| Heating plate surface temperature(170-250°C) |
<±5°C |
| Pressure adjustment range | 0-10MPa |
| Cross-sectional area of the cylinder | 2000mm2 |
| Working Voltage | 220V, 50Hz |
| Heating plate power | 3.1KW |
| Milling cutter power | 1.36KW |
| Hydraulic station power | 0.75KW |
| Total Power | 5.21KW |

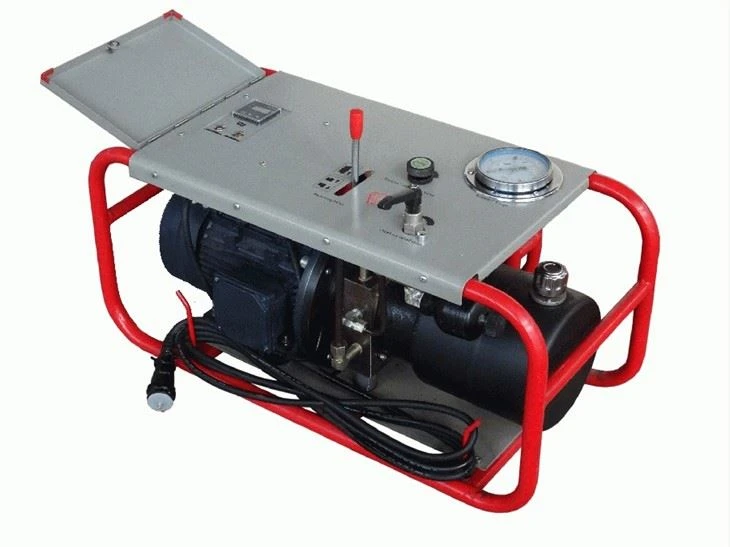

Hydraulic unit
Connected to the heater and milling cutter via the Hydraulic unit and hydraulically to the host.
Connect the hydraulic unit to the main frame to power the welding of connecting pipes or fittings.
The hydraulic unit can be connected to the data logger. It is completely developed and manufactured in Thailand and exported around the world, which makes our data loggers of the highest quality and best service in the industry.
The oil circuit module in the hydraulic unit is made of aluminum, which is corrosion resistant, light weight and long cycle time.
