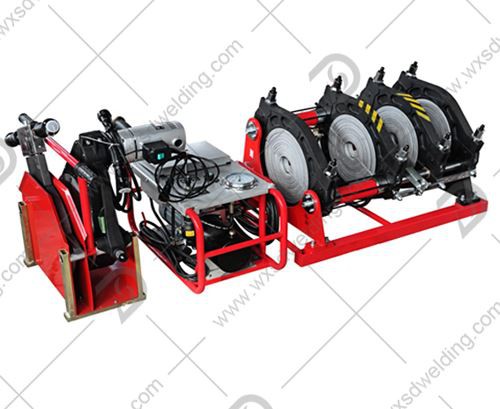

PE HDPE PPR PIPE HOT MELT MACHINE

Equipment we are providing :

Manual HDPE butt welding machine for 50mm to 200mm pipe .

Hydraulic HDPE butt welding machine for 50mm to 3000mm pipe.

Pipe cutting band saws for 20mm to 2500mm .

HDPE Workshop Fitting machine for 90mm to 2000mm .

Type		SDD315
Materials		PE，PP，PVDF
Max. range of diameter		315 mm（90-110-125-140-160-180-200-225-250-280-315）
Ambient temp.		－5～45℃
Power supply		～220V±10 ％
Frequency		50 /60Hz
Total current		29 A
Total power		3.85 kW
Include：Heating plate		2 kW
Planing tool motor		1.1 kW
Hydraulic unit motor		0.75 kW
Dielectric resistance		>1MΩ
Max. Pressure		6 MPa
Total section of cylinders		20 cm2
Volume of oil box		3L
Hydraulic oil		40～50（kinematic viscosity）mm2/s, 40℃）
Undesired sound		80~85 dB
Max. Temperature of heating plate		270℃
Difference in surface temperature of heating plate		±5℃
Basic frame	Size，mm	1050×850×700
	Weight kg	123
Hydraulic unit	Size，mm	650×430×450
	Weight，kg	60
Supports	Size，mm	730×550×630
	Weight，kg	77
Total weight，kg		260
