Product Description

SDD315 Ppr Butt Fusion Welding Machine HDPE/PE Plastic Pipe Hot Melt Equipment is manufactured with high quality materials, our products are quality tested before delivery to customers. These are high customer requirements for properties such as corrosion resistance and durability. Additionally, customers have access to these products at industry-leading prices.

Feature :

1.Removable PTFE coated heating plate with separate temperature control system.
2. Electric planning tool with reversible double cutting edge blades.
3. Hydraulic unit provides welding machine with compressing power.
4. Be made of Aluminum material, easy to carry and transport.
5.Low starting pressure ensures reliable welding quality of small pipes.
6. Temperature Controller and Timer, easy to know the time and temperature.

315-355

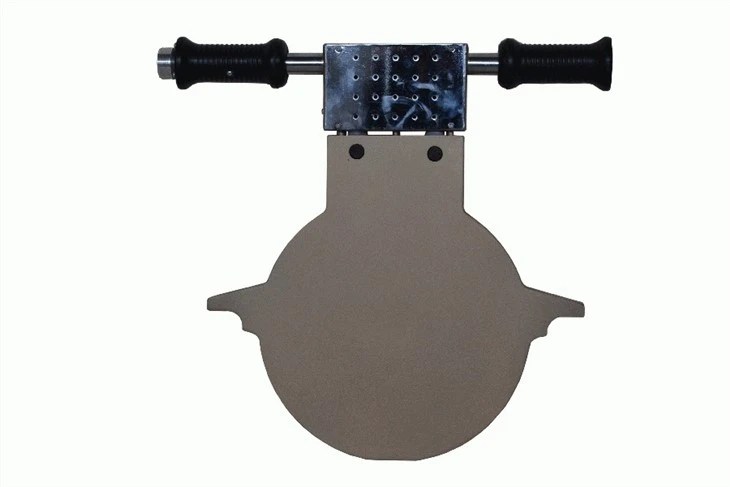

Heating plate:

H-1

The pipe ends will be heated by this heater before the welding process. The setting of the heater will be done by the thermostat on the plates.

SDD315 butt welding machine adopts PTFE-coated heating element imported from Japan, the Daikin brand, with uniform surface temperature. The heating plate is connected to the sensor of PT100, which can be directly connected to the data logger.

Basic frame

B-1

The basic frame support the plastic pipes or fittings by two fixed and two movable clamps.
Using the hydraulic pressure on the system, the two pistons on the carrying metal bars move the clamps forward and backward and supply the necessary movement for the welding process.

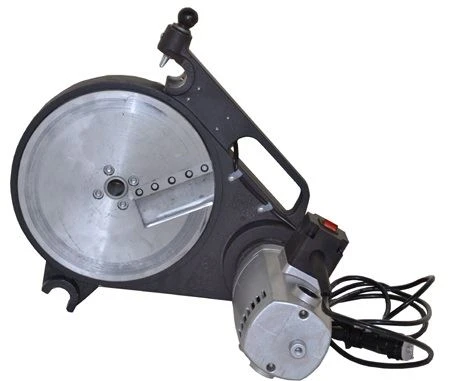

Planning tool

315

The planning Tool is the tool which clean and smooth the both ends of the pipes before the heating process .
There is an emergency stop switch on the planning tool. If a wrong operation occurs during construction, the emergency stop switch can be directly used to stop the operation.
SDD315 butt welding machine is designed for self aligning facer always produces parallel pipe faces.
