Application
Suitable for butt welding of plastic pipes and / or fittings made of PE,PP, and PVDF in worksite or workshop.
Features
Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
Low starting pressure ensures reliable welding quality of small pipes;
Separate two-channel timer shows time in soaking and cooling phases;
High-accurate and shockproof pressure meter in indicates clear readings.
Adding four wheels, easy to move. Also it can be linked with truck.
Technology parameters
Type | SDD630 | |
Materials | PE, PP, PVDF | |
Max. range of diameter | 630 mm | |
Environment Temperature | －5~45℃ | |
Power Supply | ～380 V±10％ | |
Frequency | 50 Hz | |
Total current | 32.5 A | |
Total power | 12.35kW | |
Include ： Heating Plate | 9.35 kW | |
Facing tool Motor | 1.5 kW IP54 | |
Hydraulic Unit Motor | 1.5 kW IP54 | |
Dielectric resistance | >1MΩ | |
Undesired sound | ＜70 dB | |
Max. Pressure | 8 MPa | |
Total section of cylinders | 23.06cm2 | |
Volume of oil box | 3L | |
Hydraulic oil | 40～50（kinematic viscosity）mm2/s, 40℃） | |
Undesired sound | ＜70 dB | |
Max. Temp. of Heating Plate | 270℃ | |
Difference in surface temperature of heating plate | ±5℃ | |
Basic frame | Size，mm | 1570×900×930 |
Weight，kg | 300 | |
Hydraulic unit | Size，mm | 700×520×490 |
Weight，kg | 76 | |
Planing tool | Size，mm | 840×280×1300 |
Weight，kg | 50 | |
Heating plate | Size，mm | 990×70×960 |
Weight，kg | 30 | |
Supports | Size，mm | 800×650×770 |
Weight，kg | 30 | |
Total weight，kg | 486 |
Our service

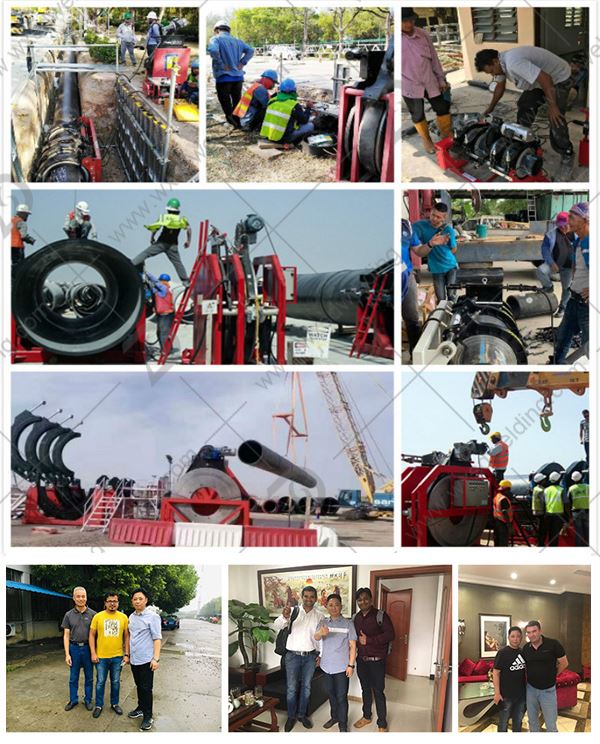

Application
Process
Our company
WUXI SHUNDA PLASTIC PIPES WELDING MACHINE CO.,LTD. is the earliest enterprise in China specializing in R&D and production of thermoplastic pipe welding equipment.
We have developed various series plastic pipe welding equipment for different size. Those equipment include manual butt fusion welding machine, hydraulic butt fusion welding machine, workshop fitting welding machine, plastic pipe saw,plastic pipe drainage welder,saddle fusion machine,Radius band saw,Socket welder and customized welding machine.
