Product Description
The Butt Fusion Pipe Welding Machine is a device for joining plastic pipes that is extensively used in pipe installation and repair. This apparatus heats the pipe ends and then "fuses" the two pipe sections together, resulting in a strong connection. This welding process is often used to join plastic pipes such as PE (polyethylene) and PP (polypropylene).

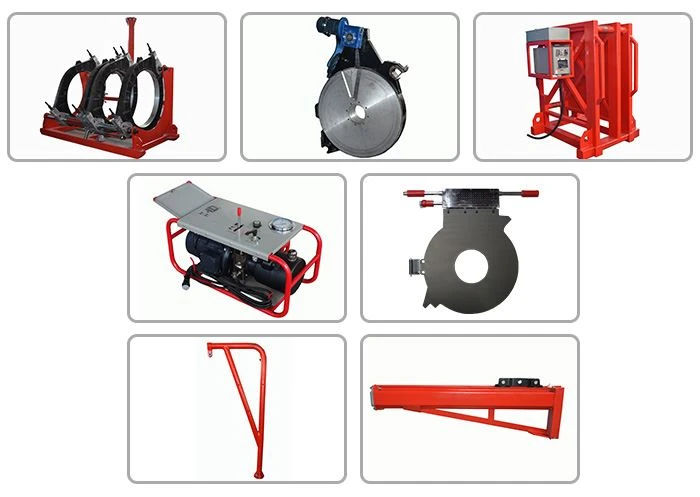

Product composition
1. Heating plate: used to soften the plastic material at the pipe's ends and attain the welding temperature.
2. Clamp: used to fix and align the pipes to be welded, ensuring the weld is accurate and stable.

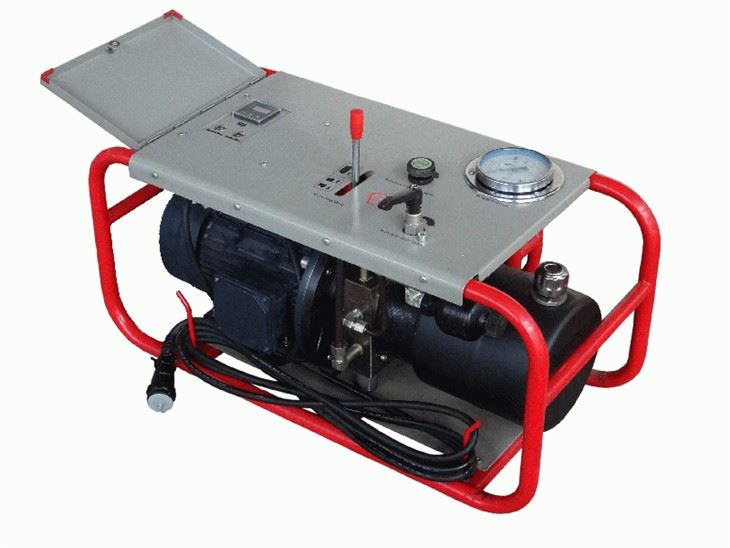

3. Hydraulic system: pressure is applied to press the two heated pipe pieces together, ensuring a consistent weld.
4. Control system: utilized to regulate the welding machine's temperature, pressure, and time to guarantee that the welding process is accurate and consistent.
Steps to weld pipes using a Butt Fusion Pipe Welding Machine
1. Preparation: Cut the pipe to be welded into appropriate lengths and polish the surface to remove dust and contaminants.
2. Clamp the pipe: Insert the pipe into the clamp to ensure that it is aligned and fastened.
3. Heating the pipe: To soften the plastic material, heat the pipe's end through the heating plate.
4. Welding: When the pipe's end reaches the proper temperature, press the two parts together to produce a firm connection.
5. Cooling: Once the welded portion has cooled and solidified, remove the clamp to finish the welding operation.
Features
A removable PTFE-coated heating plate with a separate temperature control system.
Electrical planning tool.
Made of lightweight and high-strength materials; basic structure, compact and delicate, user-friendly;
Low starting pressure ensures consistent welding quality for tiny pipes;
Separate two-channel timer displays time in the soaking and chilling phases.
High-accuracy and shockproof pressure meter displays clear values.
The ability to change welding positions improves convenience when installing diverse components.
Clamps are locked by a hydraulic system.
Special reminder
1. This machine is used to weld PE, PP, and PVDF pipes and should not be used without materials, as this may damage the equipment or cause an accident.
2. Avoid using the machine in areas where there is a risk of explosion.
3. The machine should be operated by responsible, qualified, and trained individuals.
4. The machine should be operated in a dry environment. When utilizing in the rain or on damp ground, precautions should be taken.
5. This machine's working voltage is 220v±10%, 50Hz. If an extension cord is utilized, there should be sufficient lead segments for its length.
Application
Butt Fusion Pipe Welding Machine is extensively used for industrial pipeline installation, water treatment systems, chemical equipment, and other applications that demand dependable pipeline connections. This welding method, which has the characteristics of quick welding speed, firm connection, and corrosion resistance, is frequently employed in pipeline projects.
Maintenance and Safety
Regular maintenance is required to ensure the proper operation and longevity of the butt fusion pipe welding equipment. This includes cleaning the machine on a regular basis, inspecting and repairing worn-out components like as heating elements and seals, and calibrating the temperature and pressure sensors.
Safety precautions: When operating the equipment, operators should always observe safety standards, such as wearing suitable protection gear, such as heat-resistant gloves and safety goggles. To avoid electrical shock, the machine should be properly grounded, and all safety guards and interlocks should be in place and working properly.
