![[[smallImgAlt]]](/uploads/202132132/pe-hdpe-plastic-pipe-welding-machine55125880563.jpg)
The ”PE HDPE plastic pipe weldin“ refers to the use of mechanical equipment such as a hot-melt welder to heat the surfaces of two welded parts until they reach a certain melting temperature, so that the two pipes will be one. Hot melt welding is divided into butt fusion welding, socket welding and saddle welding. Among them, butt fusion welding is a more common connection method, and it is also the most widely used connection method for PE pipes. The welding equipment is relatively simple, the connection cost is relatively economical, the welding joints are firm and reliable, the welding joints that exceed the strength of the base material can be obtained, and the welding has good sealing properties. Therefore, butt fusion welding method is popular.
Our advantages:

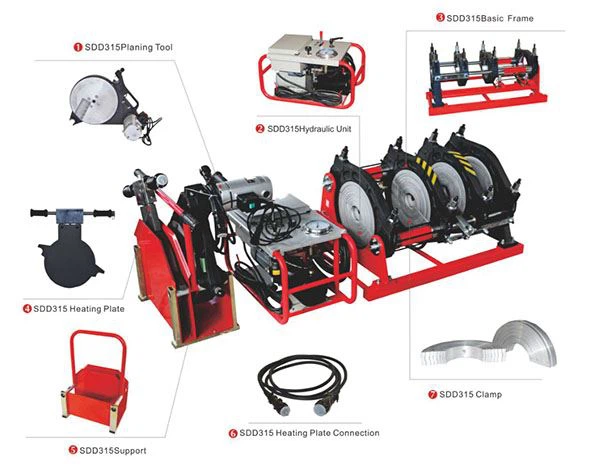

1.The raw material of the machine frame is aluminum ZL104, it is light but strong, is one of the best material for machine.
2.The main electrical apparatus elements are best of china, many are imported from abroads.

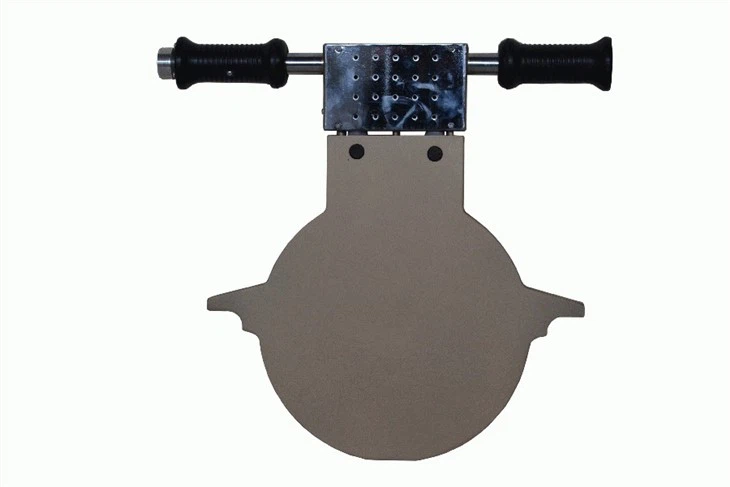

3.Removable PTFE coated heater with separate temperature control system, the temperature can be controlled to a minimum range.

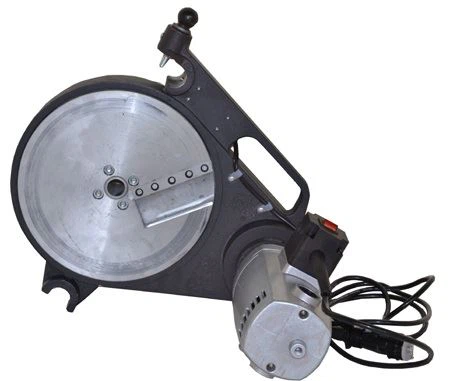

4.The electric facer adopts reversible double cutting edge blades, which can make the cutting effect more perfect.
Technology parameters
Welding range(mm) | 90mm-110mm- 125mm-140mm-160mm-180mm -200mm-225mm-250mm-280mm- 315mm |
Heating plate temperature | 270°C |
Heating plate surface temperature(170-250°C) | <±7°C |
Pressure adjustment range | 0-6.3MPa |
Cross-sectional area of the cylinder | 2306mm² |
Working Voltage | 380V 50HZ |
Heating plate power | 3 KW |
Cutter power | 1.1KW |

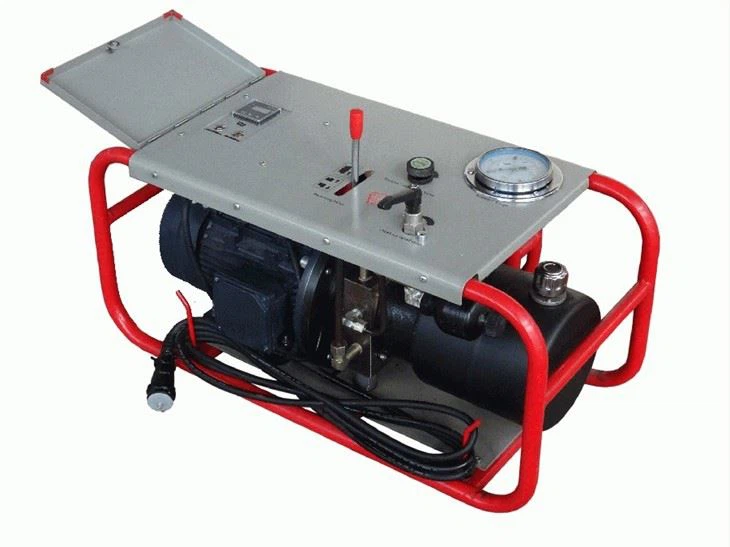

Hydraulic station power | 0.75KW |
Total Power | 4.85KW |
N.W | 200KG |

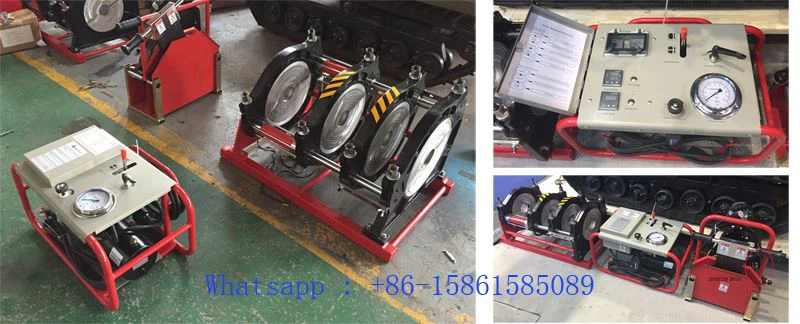

Related machines

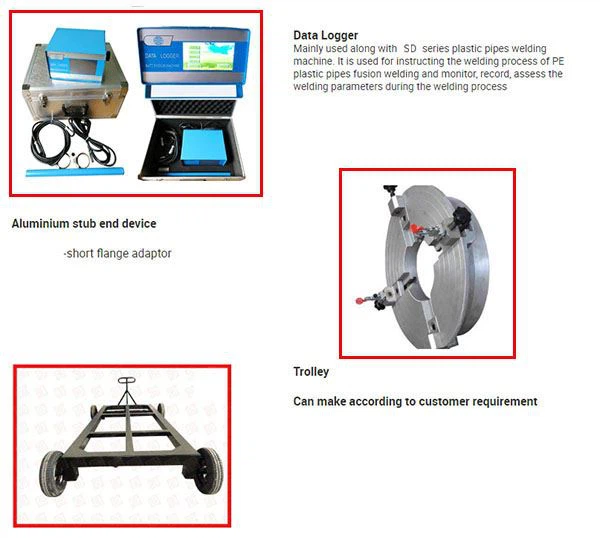

Optional part

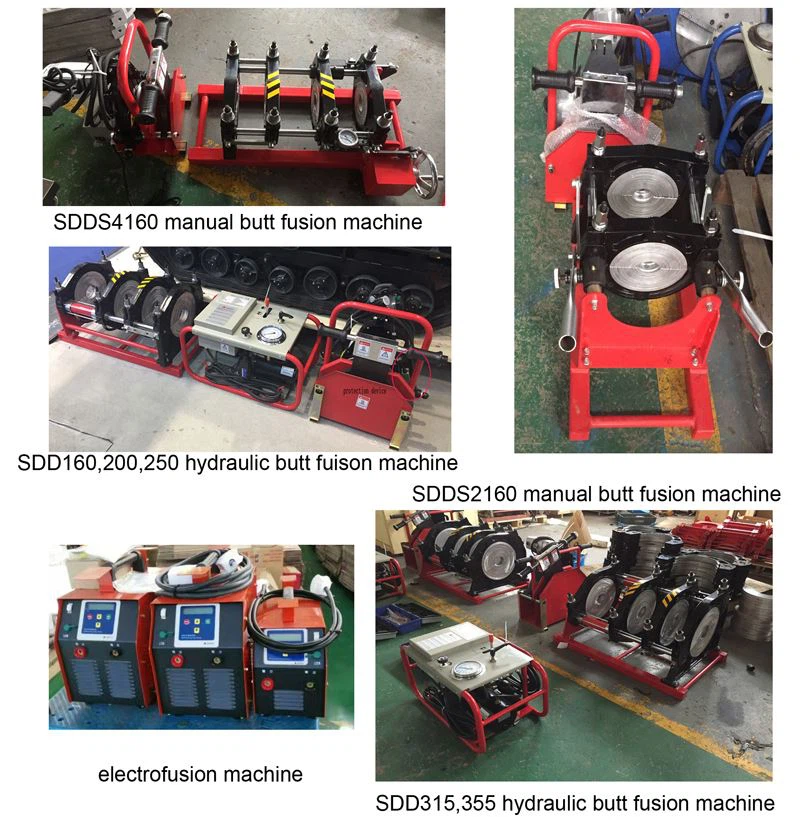

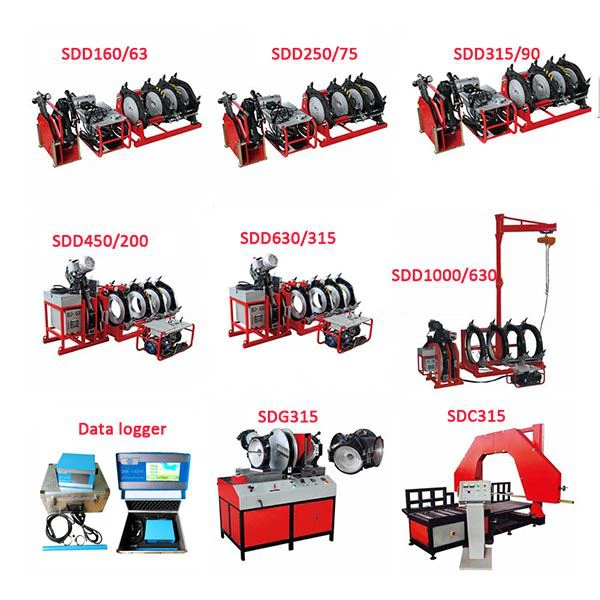

Today, our products include nine kinds and over than 20 types that can be applied to plastics pipe construction and make fittings in workshop as follow:
SDDS series manual butt fusion machine
SDD series butt fusion machine
SDQZD series Auto-butt fusion machine
SDM series saddle fusion machine
SDG series workshop butt fusion machine
SDC series band saw
Other Series special tools

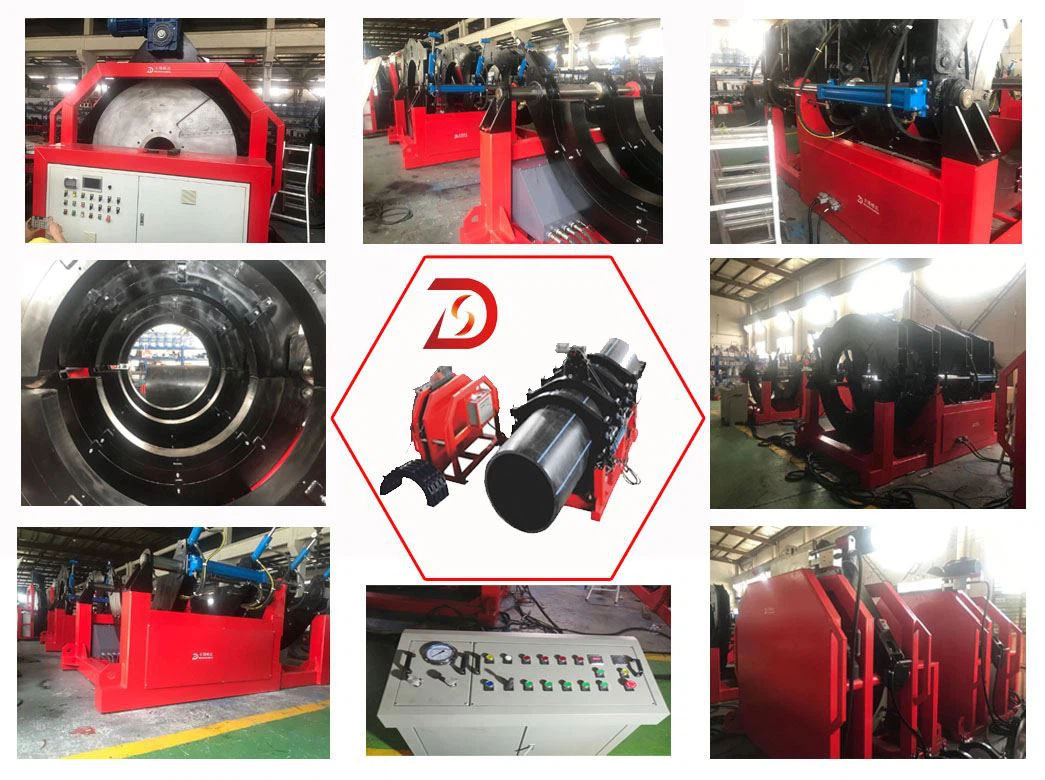

Now biggest can be upto 3000mm
FAQ
1.What is your payment term?
Sample order:100%in advance by T/T,Westrn Union,Paypal or Trade assurance.
Bulk order:T/t,30% deposit,70% against copy of B/L.
2:What is your delivery time?
Sample Order:within 3workdays after receiving 100% payment.
Bulk Order:7-20 workdays after receiving deposit (according the order's total quantity form 7 workdays to 20 workdays).
3:What is your main market?
What is your main market?Southeast Asia(Thailand,Malaysia,Indonesia),South America(Peru,Chile),Russia,India,Australia.
Sure,we can
