Product Description
The HDPE/PE Hydraulic Butt Welding Fusion Machine is a professional welding equipment specifically designed for connecting high-density polyethylene (HDPE) and polyethylene (PE) plastic pipes. This equipment uses a hydraulic drive system to provide stable welding pressure, combined with a high-precision temperature-controlled heating plate, to achieve hot-melt butt welding of the pipe ends. It is widely used in water supply and drainage, gas engineering, chemical transportation, and cable laying.

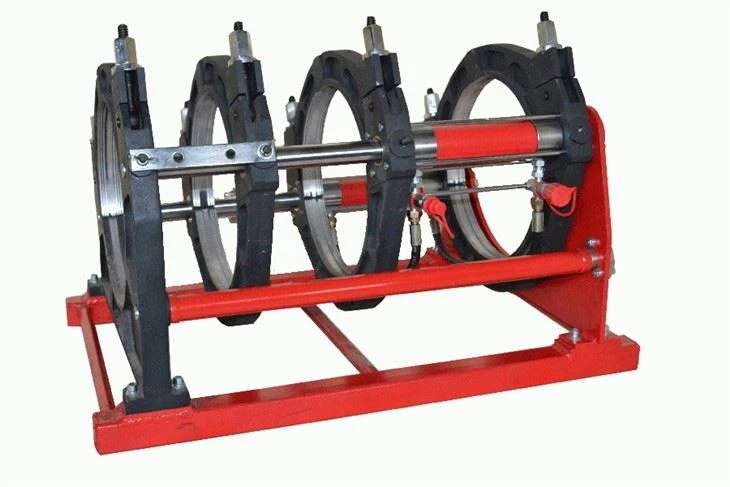

Key Components
1. Basic Frame： Holds and aligns the pipe clamps; typically made of aluminum
2. Hydraulic Unit： Provides compressing power for the fusion process
3. Heating Plate： PTFE-coated plate with independent temperature control (up to ~270°C)
4. Planning Tool (Facer)： Electric milling tool with reversible double-edge blades
5. Support Stand： Holds the planning tool and heating plate when not in use
6. Clamps： Secure pipes in position; often detachable for different pipe sizes
Key Parameters
Temperature Control Accuracy: ±5℃ (170–250℃), ensuring uniform melting.
Hydraulic Pressure: Adjustable from 0–10MPa to meet different pipe diameters/wall thicknesses.
Material Compatibility: HDPE, PE, PP, PVDF, and other thermoplastics.
Control Method: Semi-automatic (hydraulic + manual timing) / Fully automatic (PLC + data recording).
Feature
1. Temperature Control: Digital controllers with surface deviation ≤±5°C to ±10°C
2. Pressure Regulation: Adjustable hydraulic pressure with pressure-maintaining valves
3. Safety: CE-certified components, pressure relief valves, pure copper motors
4. Portability: Smaller models are hand-push; larger models require crane assistance
5. Quick Connectors: Flat-type hydraulic connectors for better sealing and safety
Optional parts
How to Choose the Right HDPE PE Hydraulic Butt Welding Machine
1. Pipe Diameter Range
Select a machine that matches your project's pipe size requirements (e.g., 90–315mm for small to medium projects, 200–1000mm for large infrastructure).
2. Hydraulic Pressure Capacity
Ensure the machine provides sufficient pressure for your pipe size and material. Large-diameter HDPE pipes require higher pressure for proper fusion.
3. Temperature Control Precision
Look for digital temperature control with ±1–5°C accuracy to ensure consistent heating and prevent material damage.
4. Build Quality & Durability
Choose machines with heavy-duty frames, corrosion-resistant components, and replaceable parts for long-term reliability.
5. Automation & Features
Consider models with data logging, touchscreen controls, and automated cycles for improved efficiency and quality control.
6. After-Sales Support
Select reputable manufacturers offering technical support, spare parts, and training to ensure smooth operation and minimal downtime.
Applications
Water supply and drainage systems
Gas distribution pipelines
Mining and industrial piping
Geothermal systems
Chemical processing plants
Maintenance and Safety Tips
Regular Maintenance
1. Inspect high-pressure hoses regularly for wear (look for oil-resistant, weather-resistant materials)
2. Check sealing rings for damage - they should be finely polished, burr-free, and precisely sized
3. Maintain heating plate cleanliness; PTFE coating should remain intact
4. Verify hydraulic cylinder integrity; aluminum alloy construction resists oxidation and corrosion
Safety Measures
1. Always wear appropriate protective gear
2. Ensure proper ventilation in the welding area
3. Follow manufacturer guidelines for temperature and pressure settings
4. Use machines with insulated quick connectors and warning signs on hydraulic cylinders
HDPE Hydraulic Butt Welding Fusion Machine Operation Precautions
To ensure welding quality and equipment safety, the following precautions should be taken during operation:
1. Keep the end face clean
Dust and impurities should be removed from the pipe end face before welding.
2. Control the heating temperature
The hot-melt temperature of PE pipes is typically controlled between 200℃ and 230℃.
3. Strictly control the pressure
The hydraulic system pressure must meet the welding process requirements.
4. Ensure sufficient cooling time
The pipe must not be moved during the cooling process to avoid affecting the weld quality.
5. Regularly maintain the equipment
The hydraulic oil, electrical system, and heating plate condition should be checked regularly.
