Application
Suitable for butt welding of plastic pipes and / or fittings made of PE, PP, and PVDF in worksite or workshop.
Features
Suitable for butt welding of plastic pipes made of PE, PP and PVDF in worksite or workshop.
Real-time data printing, recording function and USB port available.
After operator’s entering basic data on the touch screen of control panel (EX. pipe OD, SDR ,welding angle ,pipe material) ,calculations about welding pressure ,time and temperature can be made automatically.
<DVS2207-1> serving as system-default welding standard ,moreover ,customized welding standard available.
After operator’s confirmation on the pipe end alignment ,the whole welding process is done automatically ,resulting in a high working efficiency and minimizing the welding failure caused by human factor.
Focus on humanized design and detailed operation reminder enables operator to easily familiar with welding process.
Technical specifications
Welding ranges: plastic pipes: 90mm－250mm
(90mm-110mm-125mm-140mm-160mm-180mm-200mm-225mm-250mm)
Ranges of application: PE, PP and PVDF
Working voltage: ～220V±10%, 50Hz
Total power: 3.85 kW, including: planning tool: 1.1 kW, heating plate: 2 kW, automatic controller motor: 0.75 KW
PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature ≤±7°.
Environment temperature: －10° ～45°
Electronic count-down timer for heating and cooling time.

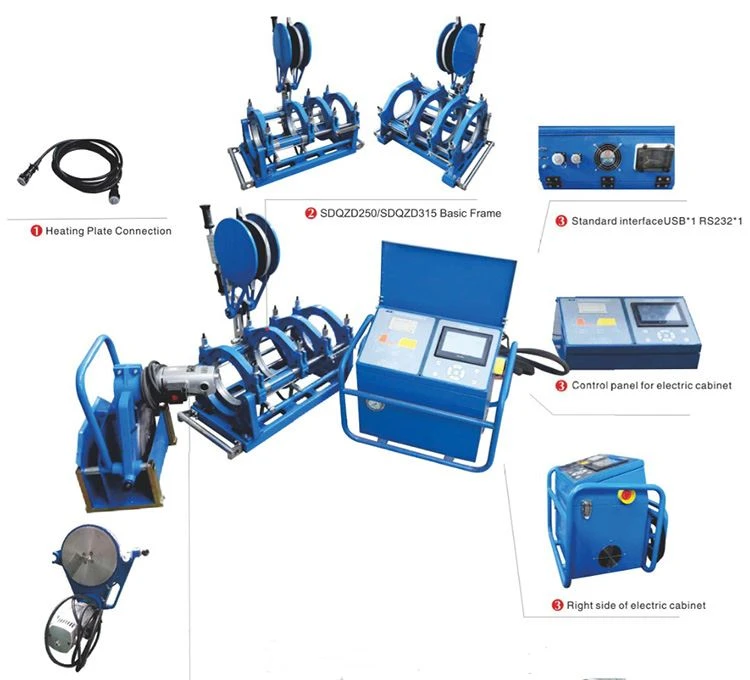

Whole machine consists of basic frame, heating plate, automatic controller and support for planning tool.
ACCESSORIES LIST
Item | Description | Unit | Qty | Remark |
1 | Basic frame | Set | 1 | |
2 | Inserts | Set | 1 | 90mm～225mm |
3 | Automatic controller | Set | 1 | |
4 | Support | Set | 1 | |
5 | Planning tool | Set | 1 | |
6 | Heating plate | Set | 1 | |
Attachment with machine | ||||
1 | Tool box | Set | 1 | |
2 | Blade of planing tool | Set | 1 | |
3 | Open wrench | Pcs | 1 | 22-24 (for clamps) |
4 | Screwdriver | Pcs | 1 | 230mm(for the screw of clamp) |
5 | The screw for clamps | Set | 1 | |
6 | Operation instruction | Pcs | 1 | |
PACKING LIST
Item | Dimension with packing（mm） | N.W（kg） | G.W（kg） | Remark |
1 | 1000×550×500 | 62 | 88 | Basic frame ,liner, heating plate (225-90mm) |
2 | 680×510×450 | 46 | 64 | Heating plate, planing tool, support |
3 | 760×510×580 | 45 | 60 | Automatic controller |
Total | 0.66CBM | 153 | 212 |
