Product Description
Hydraulic HDPE Pipe Jointing Machine is a machine used to join high density polyethylene (HDPE) pipes. HDPE pipe is a commonly used pipe material used to transport liquids, gases and other fluids. This machine uses a hydraulic system to effectively join HDPE pipes together, ensuring a strong and sealed connection.

Product composition
This type of machine usually consists of a hydraulic system, a heating plate and a control panel. The hydraulic system connects two HDPE pipe ends together by providing sufficient pressure and force. The heating plate is used to heat the ends of the pipes to soften them and make the connection possible. The control panel is used to set and monitor the machine's operating parameters to ensure the quality and safety of the connection.

Technology parameters

Type	MBW0160H
Materials	PE，PP，PVDF
Max. range of diameter	160 mm
Ambient temp.	－5～45℃
Power supply	～220V±10 ％
Frequency	50 Hz
Total current	10 A
Total power	2.5 kW
Include：Heating plate	1 kW
Planing tool motor	0.75 kW
Hydraulic unit motor	0.75 kW
Dielectric resistance	>1MΩ
Max. Pressure	6 MPa
Total section of cylinders	6.26 cm2
Volume of oil box	3L
Hydraulic oil	40～50（kinematic viscosity）mm2/s, 40℃）
Total weight，kg		106

Advantage
1. Able to connect pipes quickly and accurately. The machine can connect pipes of different sizes, shapes and thicknesses, and can be used for hot fusion butt jointing and electrofusion joining processes. It features an automatic pressure control system that ensures joining with the required force, and a digital display helps monitor the joining process.
2. Portability. It is lightweight, easy to move and suitable for on-site pipe connections. The machine's compact design requires minimal space and can be easily transported to different locations. This makes it ideal for industries that need to install pipes in remote locations.
3. Durability and reliability. They are made from high-quality materials and rigorously tested to ensure they can withstand harsh working conditions. This ensures the machine will run smoothly and efficiently for many years with minimal maintenance.

Application
Hydraulic HDPE Pipe Jointing Machine has a wide range of applications and can join various sizes and types of pipes, such as round pipes, oval pipes and square pipes. It is also flexible and can be used anywhere, indoors or outdoors.

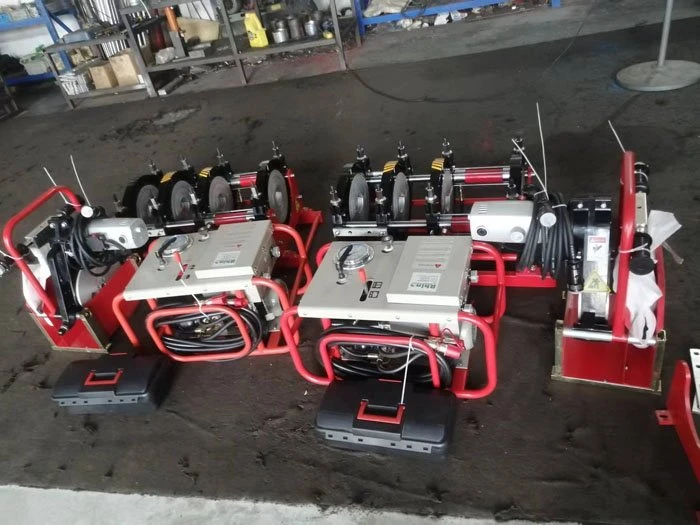

Machine in testing
