Pipe fitting butt welding jointing is an useful process in the construction and maintenance of pipelines. This method involves joining two pieces of pipe together by heating the ends and then pressing them against each other to create a strong bond and to make a whole pipeline
Butt welding is a reliable and efficient method of joining pipes, as it creates a seamless connection that is highly resistant to leaks and corrosion. This makes it an ideal choice for applications where a tight seal is essential, such as in the oil and gas industry or in water treatment plants.
By using a butt welder, pipe fitting professionals can ensure that the joints they create are of the highest quality and will stand the test of time. This process requires skill and precision, but with the right training and equipment, anyone can learn how to perform butt welds effectively.
In conclusion, pipe fitting butt welding jointing is a valuable skill that plays a crucial role in the construction and maintenance of pipelines. By mastering this technique, professionals can ensure that the pipes they install are durable, reliable, and able to withstand the harshest conditions.
Application
1.Suitable for butt welding of plastic pipes and fittings made of PE, PP and PVDF in a ditch in worksite or workshop.
2.Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
3. Removable PTFE coated heating plate with high accurate temperature control system;
4. Electrical planing tool.
5. Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.
6.Low starting pressure ensures reliable welding quality of small pipes.
7.Changeable welding position enables to weld various fittings more easily.
8.High accurate and shockproof pressure meter indicates clearer readings.
9.Separate two-channel timer records time in soaking and cooling phases.
Technology Parameter
|

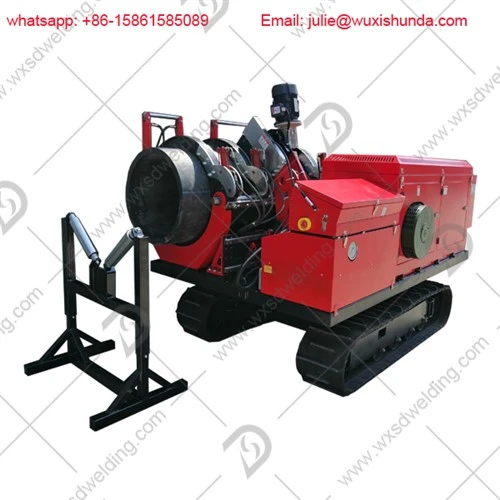

Hydraulic Butt Fusion Machine SDD800 500MM-800MM Product Details |
|||
|
WELDING RANGE O.D. |
(400*)500MM - 800MM |
PISTON AREA |
44cm² |
|
POWER SUPPLY |
380V±110%, 50/60HZ |
TEMPERATURE RANGE |
MAX. 320ºC |
|
HEATER POWER |
12.5KW |
PACKING DIMENSION |
2200*1420*1440 MM |
|
TRIMMER POWER |
2.2KW |
1350*950*1500 MM |
|
|
PUMP POWER |
2.2KW |
800*350*400 MM |
|
|
WORKING PRESSURE RANGE |
0 - 120 BAR |
GROSS WEIGHT |
1290KGS |
Advantage
|
|
Basic frame The basic frame supports and centres the plastic pipes with two fixed and two movable clamps. |
|
|
Planning tool It is the tool which clean and smooth the both ends of the pipes before the heating process . |
|
|
Heating plate The pipe ends will be heated by this heater before the welding process. The setting of the heater will be done by the thermostat on the plates. This butt welding machine PTFE coated heating element and uniform surface temperature. |
|
|
Hydraulic Unit The necessary electric will be transferee! to the heating plate and planning tool by means of this unit and to the main machine by the hydraulic pressure. Good hydrualic system. Keep long time. |
Products Packing
Our company
WUXI SHUNDA PLASTIC PIPES WELDING MACHINE CO.,LTD. is the earliest enterprise in China specializing in R&D and production of thermoplastic pipe welding equipment.
We have developed various series plastic pipe welding equipment for different size. Those equipment include manual butt fusion welding machine, hydraulic butt fusion welding machine, workshop fitting welding machine, plastic pipe saw,plastic pipe drainage welder,saddle fusion machine,Radius band saw,Socket welder and customized welding machine.
