Butt Fusion Welding Machine For PE HDPE Pipe
The hydraulically operated butt fusion machine is featured by robust, compact and rugged reliability. The hydraulic power station gives sufficient pressure to butt fusing pipes and fittings with a variety of pressure ratings.
Hydraulic butt fusion machine is compatible with data logger, which records and documents the key parameters of the fusion process
Technology parameter
| Model | SDD160 |
| Welding Range | 50 63 75 90 110 125 140 160 mm |
| Heating Plate Max.Temperature | 270℃ |
| Temperature Deviation in Surface | ≤±5℃ |
| Working Voltage | 220V, 50/60HZ |
| Total Power | 2.45KW |
| Heating Plate Power | 1KW |
| Planning Tool Power | 0.7KW |
| Hydraulic Unit Power | 0.75KW |
| Pressure Adjustable Ranges | 0-6.3Mpa |
| Weight | 106kg |
Product composition of SDD160 Manual HDPE Pipe Jointing Machine

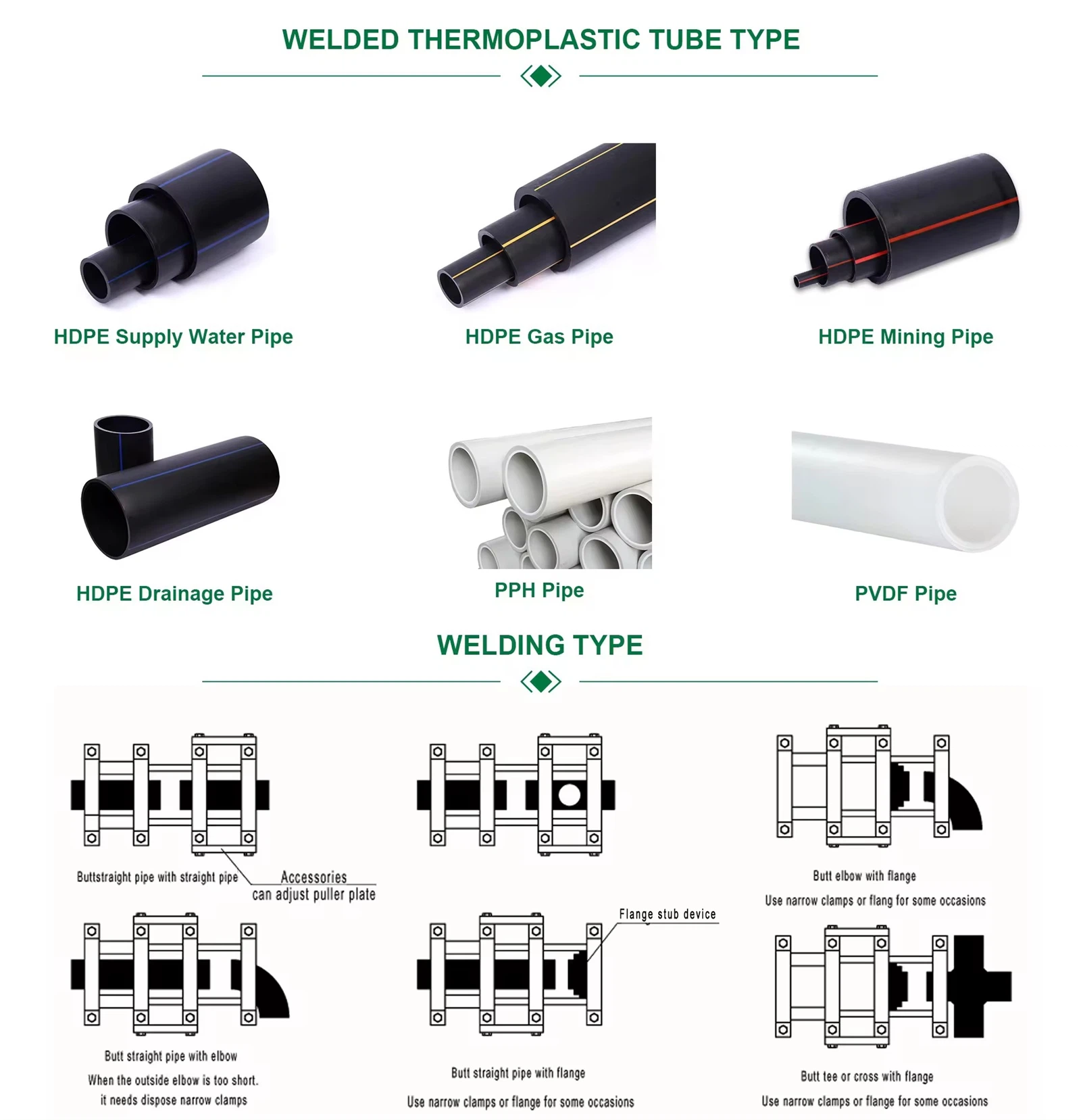

The main machine has a double-sided double chuck device, and its function can be realized by two hydraulic cylinders. Equipped with leak-free quick connector. The main body can be moved and fixed by the position of the gusset plate to realize the welding of the straight welded pipe and the T pipe fitting.
The hydraulic system is light in weight, with an open structure for easy maintenance, and is equipped with a chuck on/off control lever. Pressure control valve provides accurate welding pressure.
The plane cutting machine works through the electric chain to realize the outward cutting.
The heating plate is coated with PTPE, with a split temperature digital display, equipped with a timer, a voltmeter, a digital display control switch, a set of safety protection switches and two powder sockets.
The milling cutter/heating plate holder comes with a storage box to protect the flat knife and the heating plate. It also comes with a wooden delivery box to take care of the equipment.
Packages
1. The shipping:3 days after received payment
2. The packaging: standard export plywood cases
3. Our machine will be wraped by plastic file, put into a wooden box at last. The type of package is avoid getting rusty easily .
Guarantee Clauses
1. The guarantee range refers to the whole machine.
2. Maintenance for malfunctions during normal utilization is free of charge within guarantee time that is 12 months
3. The guarantee time starts with the date of delivery.
4. Fees are charged in case of the following condition:
4.1 Malfunction caused by improper operation
4.2 Damages caused by fire, flood, and abnormal voltage
4.3 Working exceeds its normal function
5. Fees are charged as actual expense. A contract about the fees shall be abided if there is one.
6. Please contact us or our agent if any questions.
